We(bobe-paper machine) are professional in making paper machine,such as Napkin Machine,Slitting Machine,Handkerchief Machine, Cartoning Machine,Sealing Machine ect.

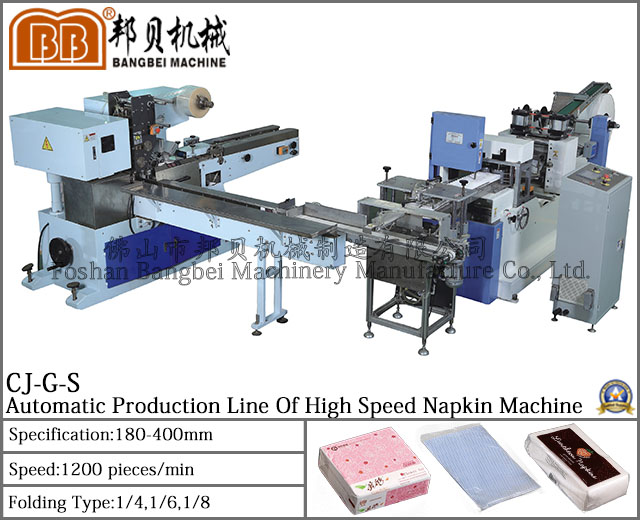

180-400 CJ-G-S Automatic Production Line Of High Speed Napkin Machine

Performance description

Bobe paper machine manufacturing 180-400 CJ-G-S automatic production line of high speed napkin machine performance is good, efficient, stable, safe, high degree of automation, the separation of accurate, beautiful packaging, paper towel manufacturers, non-woven manufacturers, wipes manufacturers ideal Automatic paper towel production line, the majority of users by the unanimous respected.

Working principle

Slitting Machine in accordance with the specified size of the base paper cut into paper, the machine in accordance with the specified specifications, patterns, folding, embossing and automatic folding through the automatic counting and separation, automatic packaging into a single package or in the package Napkins, wallets, napkins, nonwovens, wipes and so on.

Machine characteristics

1.counting system: electronic counting jump, to ensure accurate number of sheets, easy to package, more efficient.

2.Automatic separation: through the PLC system has been folded a good amount of napkins in accordance with the specified number of automatic separation, effectively reduce labor costs and improve production efficiency.

3.Packaging line: through the packaging line has been folded a good napkin packaging into a single package or package, effectively reduce labor costs and improve production efficiency.

4.Embossing device: can be used to point flat, point to point steel roll, steel roller, wool roller, felt roller and other combinations.

5.Transmission control system: the use of advanced full servo drive control system, greatly reducing the failure rate, reduce the cost of machine maintenance and maintenance of the probability and maintenance time.

Recommend matching device

1.Gluing Composite Device: the paper is not separated, not easy to break, more beautiful three-dimensional pattern, feel more fluffy and more flexible, strong water, can be used for restaurant dining, toilet towels, kitchen oil, water.

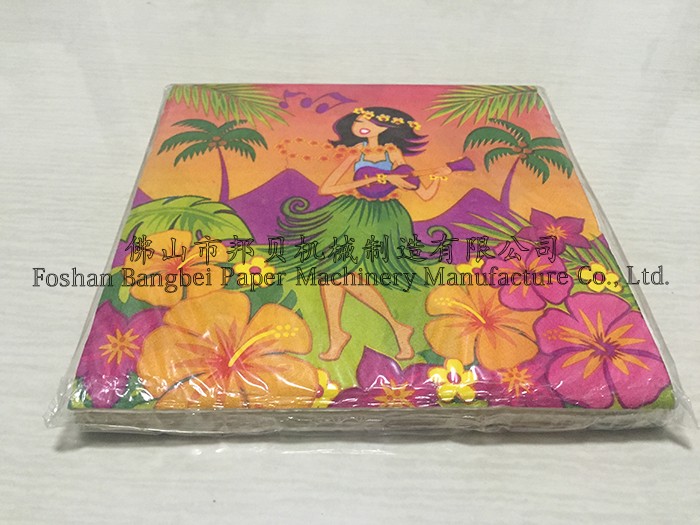

2.Printing device: the monotonous pure color napkins given colorful colors or patterns, it is more upscale, optional 1-3 colors.

3. Steel to steel embossing device: embossing clear layer, paper smooth and smooth, high grade.

4.Correction device: to reduce the base paper in the feed process offset the range, improve the product pass rate.

The model porameters are only for reference

Machine Model	180-400 CJ-G-S Automatic Production Line Of high speed napkin machine
Product Specification	180-400
Raw material diameter	Ø1200mm (Ø＞1200mm need order)
Folding Type	180-230:1/4、1/6、1/8 240-400:1/4、1/6、1/8、1/12、1/16
Operating Speed	1200 pieces/min
Layers Of The Paper	12-23g/㎡,2 to 4 ayers
Maximum Width Of Raw Material	1500mm
Inner Diameter Of Raw Paper Core	Ø76.2mm
Main Unit Structure	wallboard typer
Machine Drive	Synchronous gear belt drive,flat belf feeding
Control Method	Parameters setting by touch screen,PLC control
Counting Forms	PLC counting ，pneumatic fold
Rear Frame Feeding	Automatic feeding,Type wide belf feeding
Recommend Collocation Device	1.Gluing composite device. 2.Color printing device,1-3 colors. 3.Steel on steel embossing device. 4.Rectifying device.
