We(bobe-paper machine) are professional in making paper machine,such as Napkin Machine,Slitting Machine,Handkerchief Machine, Cartoning Machine,Sealing Machine ect.

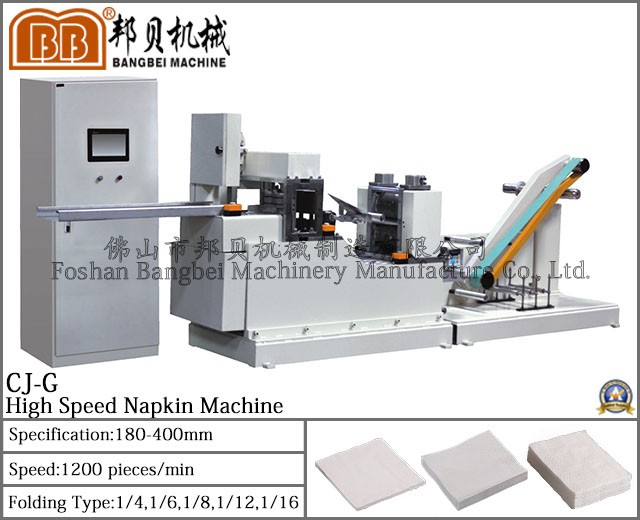

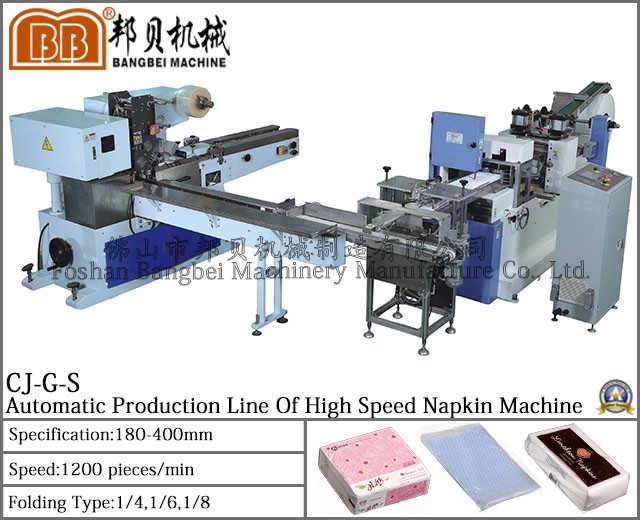

180-400 CJ-G High-Speed Napkin Machine

Performance description

Bobe paper machine manufacturing 180-400 CJ-G high speed napkin machine is simple, good performance, efficient, stable, safe, is the ideal manufacturer of paper towel manufacturers supporting the equipment, the majority of users unanimously respected.

Working principle

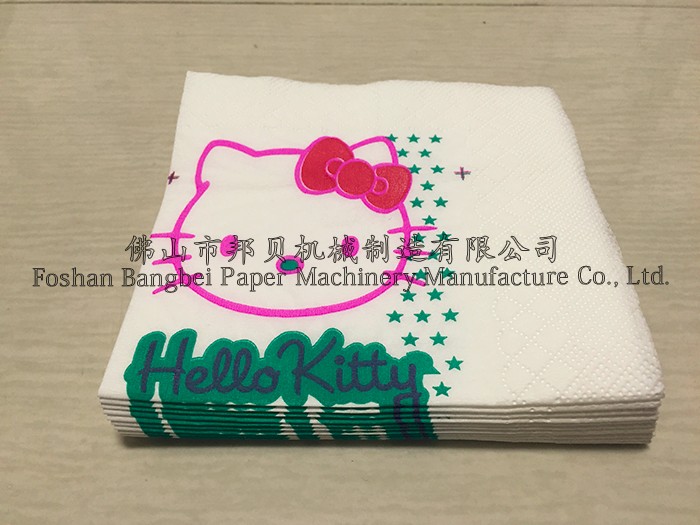

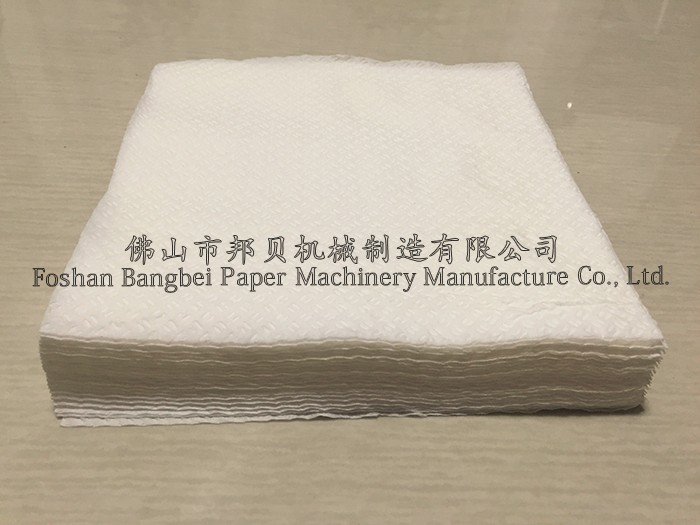

Slitting Machine according to the specified size of the base paper cut into paper, the machine in accordance with the specified specifications, patterns, folding, embossing and automatically folded into napkins, wallets paper, aircraft napkins and so on.

Machine characteristics

1.counting system: electronic counting skip, ensure the number of correct and easy package, more efficient.

2.Transmission control system: adopt advanced full servo drive control system, effectively reduce the failure rate, reduce the cost of machine maintenance and maintenance of the probability and maintenance time.

Recommend matching device

1.Gluing Composite Device:The utility model has the advantages that the paper can not be separated, is not easy to be damaged, the pattern is more three-dimensional and beautiful, the handle is more fluffy and elastic, and the water absorbing force is strong, and the utility model can be used for dining in a restaurant, a clean hand in a toilet, a kitchen oil absorption and water absorption。

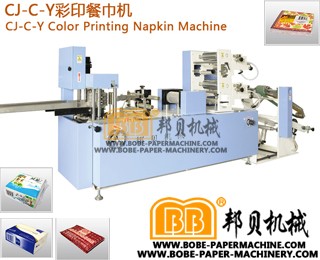

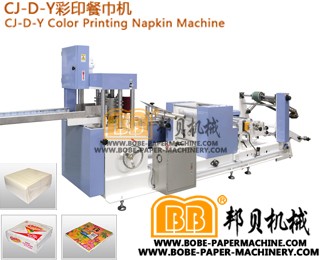

2.Printing Device:The monotonous colors assigned to color napkin or pattern, more upscale, optional 1-3 color.

3.Steel to steel embossing Device:Embossing clear not loose layer, paper smooth and soft, high grade.

4.Rectifying Device:Reduce the paper in the process of feeding migration rate, increase the rate of qualified products.

5. Safety wall: effectively reduce the occurrence of accidents, reduce production safety risk factor.

6.Automatic stacking: through the PLC system to have a folded napkin in accordance with the specified number of automatic stack, effectively reduce labor costs and improve production efficiency.

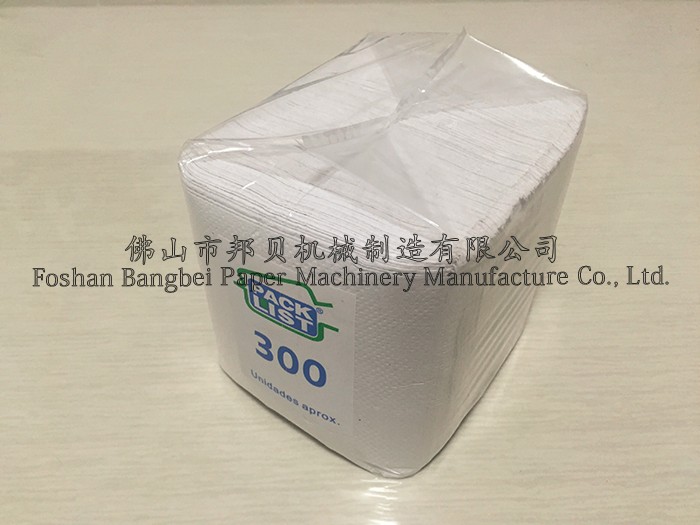

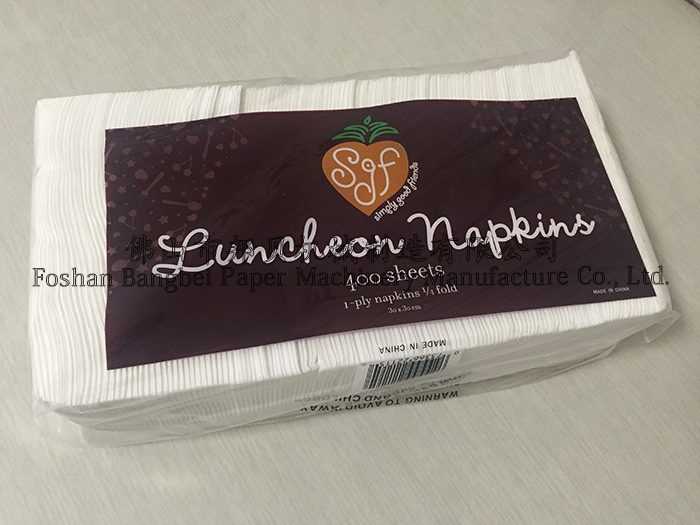

7.packing line: through the packaging line to have folded napkins packaged as a single package or package, effectively reduce labor costs and improve production efficiency.

The model porameters are only for reference

MACHINE MODEL	180-400 CJ-G High Speed Napkin Machine
FINISHED PRODUCT SIZE	180-400
Raw material diameter	Ø1200mm (Ø＞1200mm need order)
LAYERS OF THE PAPER	2-4 layer 12-23g/㎡Machine Model
MAXIMUM DIAMETER OF RAW Material	1500mm
INNER DIAMETER OF RAW PAPER CORE	Ø76.2mm
EMBOSSING	1.Steel to rubber The paper is even and soft after embossing; applicable to most of the paper products; suitable for border printing. 2.Steel to wool rolter The paper is in good shape after embossing and it feels good for hand carrying in large packages; suitable for full printing. 3.Steel to steel The embossing is clear and undispersed. and the paper is even and soft, in a very high grade; suitable for border printing, and especially for 4-layer paper.
FORMING UNIT	moulding by machine 1/4; 1/6
MAIN UNIT STRUCTURE	wallboard type, connected by bolts
MACHINE DRIVE	total-servo driving, flat belt feeding
CONTROL METHOD	parameters setting by touch screen, PLC control
MACHINE POWER	5KW
CUTTER POWER	0.55KW
ADDITIONAL FUNCTIONS	1. Automatic pulling-off function in case of over-thick raw matertai joints; 2. Machine halt in case of paper broken; 3. Machine holt in case of embossing process stopped; 4.Machine slowing down in case of raw material running out,machine halt withour material.
MACHINE SPEED	1300 pieces/ min
PRODUCING SPEED	1200 pieces/ min
REAR FRAME FEEDING	Automatic feeding, side-compression wide belt feeding
Recommend Collocation Device	1.Gluing composite device 2.Color printing device,1-3 colors 3.Steel on steel embossing device 4.Rectifying device
