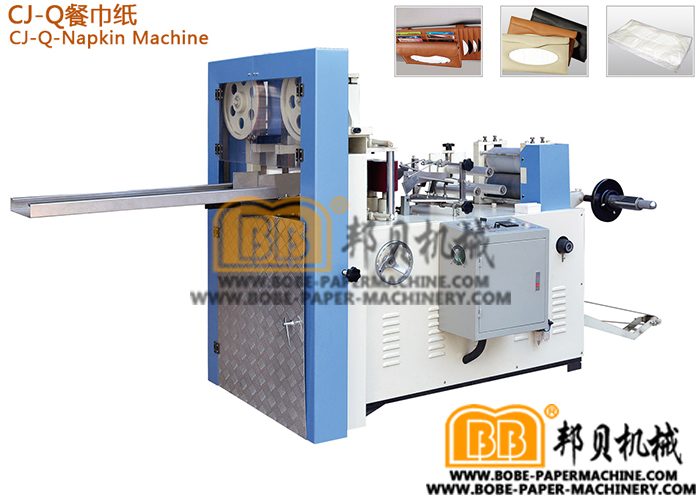

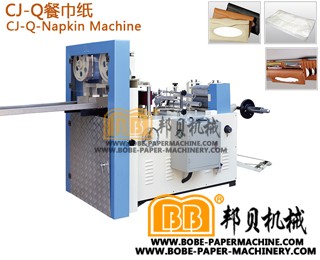

CJ-Q-Napkin Machine
1、To emboss designs on the slit bobbin paper and fold it automatically into a square or rectangular; the machine uses electronic counting placement to ensure the accuracy of the quantity of paper sheets, and the conveniency for packaging; 1/4、1/6、1/8 and other specifications can be adjusted by requirements.
2、 This model is a professional production for dedicated vehicle napkins, removable, paper ends unexposed, easy to use, the driver’s line of sight unblocked, suitable for a variety of vehicle drivers.
Letters and phone calls for enquiries are welcome.
bobe-paper machine,bobe-paper machinery
The model porameters are only for reference
MACHINE MODEL:CJ-Q-Napkin Machine
WIDTH OF RAW MATERIAL:180~210 mm
MAXIMUM DIAMETER:1100mm (more than 1100mm by special order)
INNER DIAMETER OF RAW PAPER CORE:76.2 mm (3 inches)
UNWINDER:a single layer belt, pneumatically assisted
RAW MATERIAL REQUIREMENTS:12~20 g/mm wood pulp paper or straw paper, 2~3 layers
CONTROL MODE:frequency control of motor speed, inching paper, nose anti-wind paper function
SPEED REQUIREMENTS:the highest speed 600 pieces/min with counting, normal speed 550 pieces/min
EMBOSSING TYPE:Steel to rubber (point to point, point to sphere, steel to wool roller by special order)
MODE OF DRIVING:Steel to rubber (point to point, point to sphere, steel to wool roller by special order)
MODE OF COUNTING:electronic pneumatic counting; step-by-step counting is available (one or a set of independent regulation)
MODE OF FORMING:moulding by machine
MAIN UNIT POWER:1.5 KW
DIMENSIONS:3.6 xl .5 xl .8 (length x width x height) unit: m
