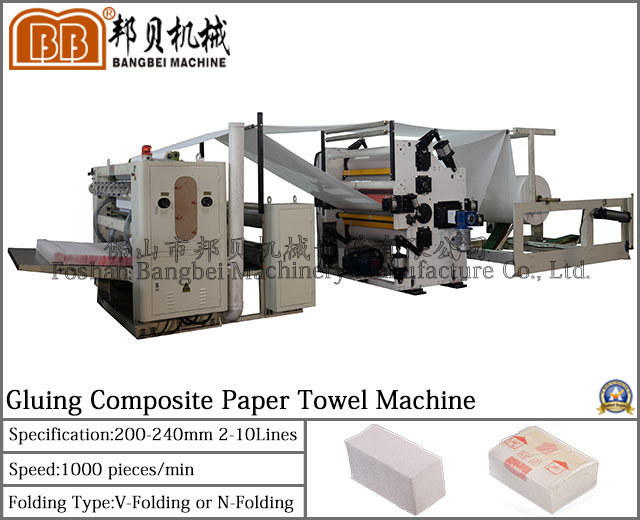

CZ-HF(2-10 Line)Gluing Composite (V-Folding/N-Folding) Paper Towel Machine

Performance description

Bobe paper machine manufacturing Gluing Composite (V-Folding/N-Folding) Paper Towel Machineis simple, high production efficiency, low manpower production and running smoothly, is the ideal manufacturer of the majority of paper towel manufacturers.

Working principle

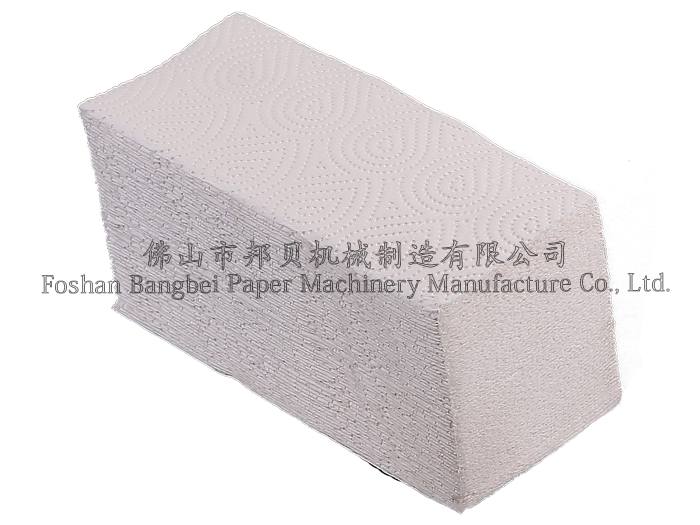

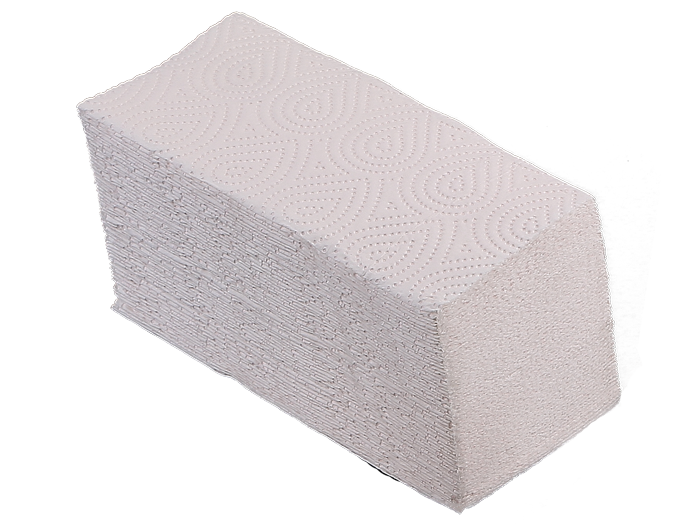

Base paper after embossing or pressure edge and glue on the composite roll through the knife and cross-cut, folded into a hinge-shaped rectangular stack paper.

Complete series of removable pull-out type facial tissue folding machines are used to fold facial tissue into chain-type cross-folded rectangular pieces after the base paper is cut with a knife roller; the folded hand towel/facial tissue paper can be pulled out one by one by each pulling, so that thefacial tissue can be used conveniently and kept clean. This kind of machine adopt vacuum suction and automatic fold counting function, with such advantages as high speed, neatly folding, and easy to operate etc.

Machine characteristics

1. Fully automatic controls: PLC computer programming, frequency conversion speed regulation, real-time monitoring, change of parameters.

2. Longitudinal cutting knife, edge embossing device are air-bag type, separate front and rear independent pneumatic control, so that it’s easier to adjust. Alloy cutting blade and bearing steel pinch roller are endurable.

3. It’s maintenance free and gets the high-precision transmission because of the overall machine adopts synchronized belt and flat-belt transmission.

4. The machines are designed into wallboard and overall steel base plate with firm structure to ensure stability of high speed machine running.

5. Pneumatic constant-pressure unwinding belt, automatically get adaptable to base paper diameter.

6. Pneumatic left/right synchronized paper feeding mechanism greatly reduces labor intensity.

7. Equipped with steel to steel embossing unit. Embossing device is independent pneumatic control.

8. Roots vacuum pump adsorption system, make the machine has the feature of large adsorbing amount and stable pressure loading.

Recommend matching device

1.Printing device: the monotonous pure color napkins given colorful colors or patterns, it is more upscale, optional 1-3 colors.

2. Steel to steel embossing device: embossing clear layer, paper smooth and smooth, high grade.

The model porameters are only for reference

Machine model	CZ-HF(2-10 Line)Gluing Composite (V-Folding/N-Folding) Paper Towel Machine
Tissue open size	190+/- 2mm 110-190 mm (adjustable)
Tissue folded size	95+/- 2 mm 110-190 mm (adjustable)
Folded Shape	V/N Folding
Raw material diameter	Ø1200mm (Ø＞1200mm need order)
Raw paper (g/sm)	Hand Towel: 2 layers/sheet, each layer is 12-18g/sm
	Hand Towel: 1 layer/sheet, each layer is 25-38g/sm
	Tissue: 2 layers, each layer is 14-18g/sm
Raw paper core diameter(mm)	76.2/152mm(other size should be order)
Output lines	2-10lines
Speed	1000meter/min/Line
Programmable controller	Mitsubishi PLC programmable controller
Raw paper loading unit	Automatic Pneumatic Loading
Slitting device	Pneumatic dot slitting
Driving system	Timing belt driving system
Counting system	Alternate stack by stack
Main motor power	Frequency conversion speed regulator,18.5kw
Vacuum suction system	Roots vacuum pump 30KW
Mainframe structure	The metal Wallboard type, base metal plate thickness is 50mm
Pneumatic system	8kg/cm2 (air compressor should be prepared by customers themselves)
Overall size(m)	8.52.81.9 approximate
Weight of machine(kg)	8000-9000kg approximate
